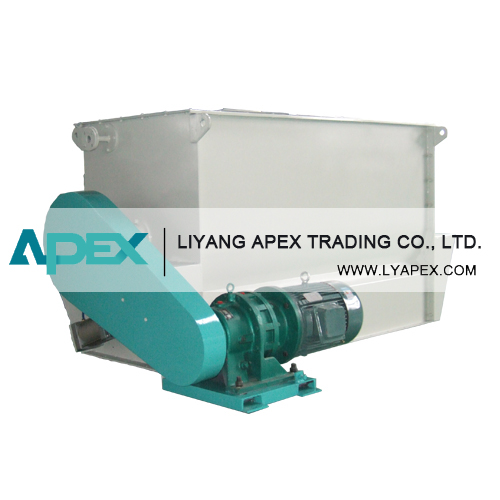

SLHY Series Ribbon Mixer

SLHY Series Ribbon Mixer



Features

1. The mixing chamber is constituted by twin screws and atomizing system. The filling seal is adopted for ends of shaft to improve tightness and prevent from leakage;
2. Specially designed discharger has big door-opening angle and quick discharging with little residue;
3. Good tightness and no leakage;
4. Pneumatic or electric driven discharging is used with correct, stable move and good tightness.

Main Technical Features



   Model

Parameters

SLHY0.6

SLHY1

SLHY2.5

SLHY5

SLHY7.5

SLHY10

Volume(m³)

0.6

1

2.5

5

7.5

10

Capacity /Batch(kg)

250

500

1000

2000

3000

4000

Mixing Time(min)

5-6

5-6

5-6

5-6

5-6

5-6

Discharging Time (s)

5

5

5

5

5

5

Homogeneity (cv≤%)

7

7

7

7

7

7

Power(kw)

5.5

11

15

30

37

45
