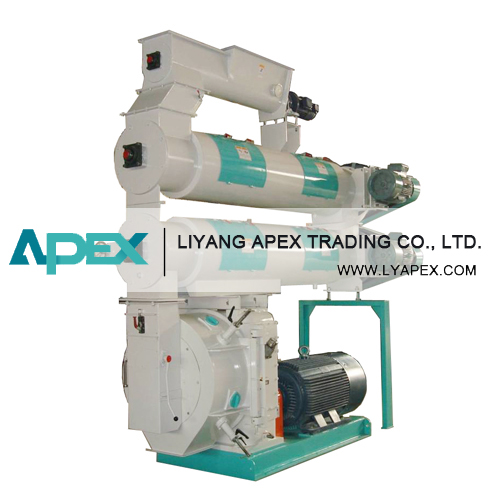

Features
1. Gear directly-connecting driving is adopted for high efficiency;
2. Full stainless steel feeder; variable pitch anti-bridging structure; Imported FC control;
3. Full stainless steel conditioner with axial steam spraying extends the conditioning and cooking time;
4. Main gear and pinion shaft adopt the carbonizing quenching with high accuracy; smooth driving, low noise and long service life;
5. Gearbox and driving holes’ accuracy are guaranteed by specialized casting supplier and CNC;
6. The bearing and oil seal in the main drive are imported, and a specialized lubrication oil return system is available to ensure reliable bearing lubrication;
7. 3pcs of quick disassembling type precisely-cast die clamps are adopted to connect the die and quill flange, resulting in convenient and quick disassembling of die;
8. Pellet chamber door and feed chute are fully made of stainless steel with high anti-corrosion ability and long service life;
9. The connection between motor and gearbox adopts new type S-shape spring coupling for more convenient disassembling and assembling and more reliable use.
Main Technical Parameter
|
Parameters
Model |
Output
(t/h) |
Main Power(kw) |
Power Of Conditioner(kw) |
Power Of Feeder (kw) |
ID Of Die(mm) |
Pellet Size(mm) |
|
SZLH400b2 |
3-12 |
75/90 |
5.5×2 |
1.5 |
￠400 |
￠2-18 |
|
SZLH420b2 |
3-14 |
90/110 |
5.5×2 |
1.5 |
￠420 |
￠2-18 |
